Explore OEM AWP hydraulic cylinders for scissor lifts, boom lifts, and aerial work platforms. Jiangxin supports custom designs, stable bulk supply, and replacement cylinder requirements.
Aerial work platforms depend on hydraulic cylinders for controlled lifting, steering, and stable machine support. Cylinder geometry, seal performance, rod finish, mounting accuracy, and load-holding behavior all influence smooth movement, platform stability, and equipment uptime.
Jiangxin supplies OEM and replacement AWP hydraulic cylinders for scissor lifts, articulated and telescopic boom lifts, and other mobile elevating work platforms. Buyers can source application-specific lifting cylinders, steering cylinders, and support leg cylinders for equipment manufacturing, distributor programs, and repeat maintenance demand.
Start with the cylinder function and machine architecture, then confirm bore, rod diameter, stroke, retracted and extended length, mounting centers, pin sizes, port position, working pressure, and seal requirements. The replacement must match both the installation envelope and the forces generated through the full platform movement.
| Cylinder type | Primary AWP function | Key sourcing checks |
|---|---|---|

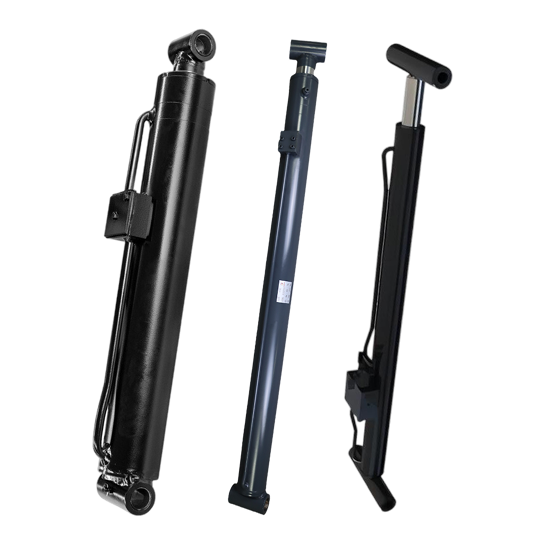

| Lifting cylinder | Raises and controls a boom, scissor stack, or work platform | Rated load, stroke, pin centers, column stability, pressure and load holding |

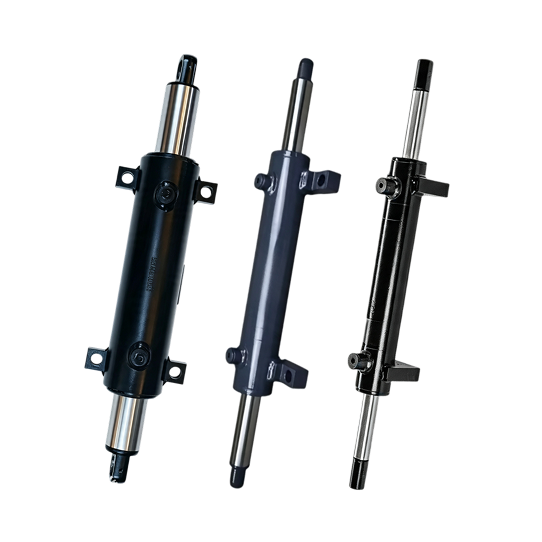

| Steering cylinder | Controls wheel or axle steering on mobile platforms | Total travel, centered length, rod arrangement, joint geometry and port orientation |

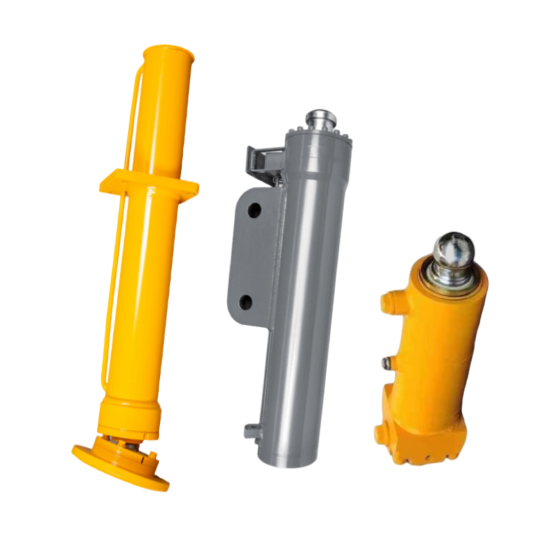

| Support leg cylinder | Deploys outriggers and stabilizes the chassis during elevated work | Static load, closed height, ground clearance, mounting interface and load holding |
For an accurate quotation, send the cylinder drawing or existing part number together with the AWP model, cylinder function, required quantity, operating pressure, rated platform load, and working environment. A dimensional and application review helps separate a true fit-for-function replacement from a cylinder that only looks similar.
Provide the machine model and cylinder function plus bore, rod diameter, stroke, retracted and extended length, mounting ends, pin sizes, port thread and position, working pressure, quantity, and a drawing or clear sample dimensions.
Yes. A drawing or measured sample can be reviewed for dimensional compatibility, mounting geometry, materials, seals, ports, surface treatment, testing requirements, and packaging before sampling or production is confirmed.
Lifting cylinders move and hold the boom, scissor mechanism, or platform. Steering cylinders control chassis direction, while support-leg cylinders deploy outriggers to stabilize suitable machines before elevated work. Each function has different force, travel, mounting, and load-holding requirements.
Check corrosion protection, rod surface condition, seal and fluid compatibility, temperature range, contamination exposure, hose and port protection, drainage around mounting points, and the inspection or load-holding tests required for the intended duty cycle.
