APPLICATIONS
Advancing intelligent manufacturing and hydraulic innovation through independent R&D.
AUTOMOTIVE LIFT PLATFORMS
Automotive lifting platforms are widely used in scissor lifts, mobile scissor lifts, two-post lifts, and four-post lifts. Hydraulic cylinders are responsible for vehicle lifting, synchronization, leveling, platform locking, and controlled lowering operations. Their performance directly affects the safety of both operators and vehicles.

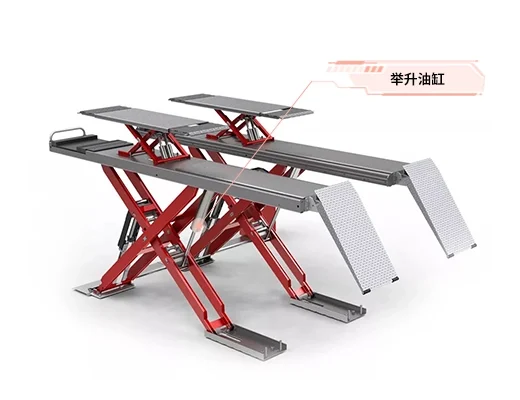

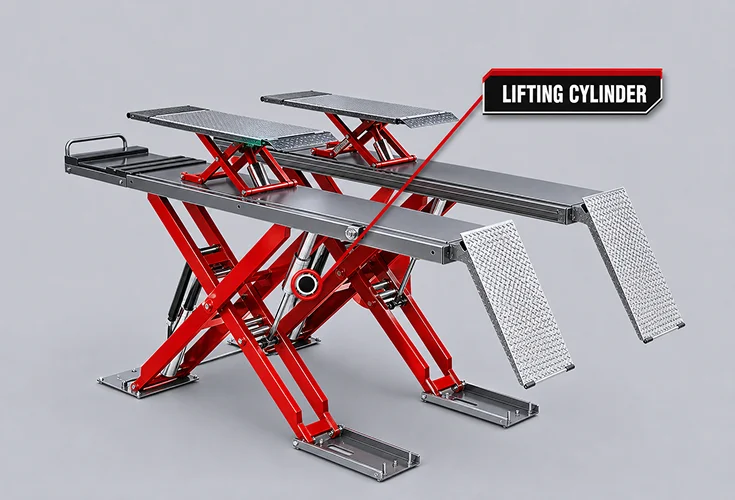

Scissor Lift
Mobile Scissor Lift
Two-Post Lift
Four-Post Lift
Scissor Lift
Mobile Scissor Lift
Two-Post Lift
Four-Post Lift
KEY
CHALLENGES
High Safety Requirements
Lifts hold 3–5T vehicles, so internal leakage or hose burst creates serious risk.
Dual-cylinder Synchronization
Scissor and four-post lifts need left-right height difference controlled within ≤5mm.
Low-profile Installation
Inground and slim scissor lifts require short pin-to-pin dimensions and low collapsed height.
Long Static Holding
Vehicle service may last 2–8h, requiring tight control of cylinder drift.
Contaminated Workshop Wnvironment
Dust, oil, wash water and road salt accelerate rod corrosion.

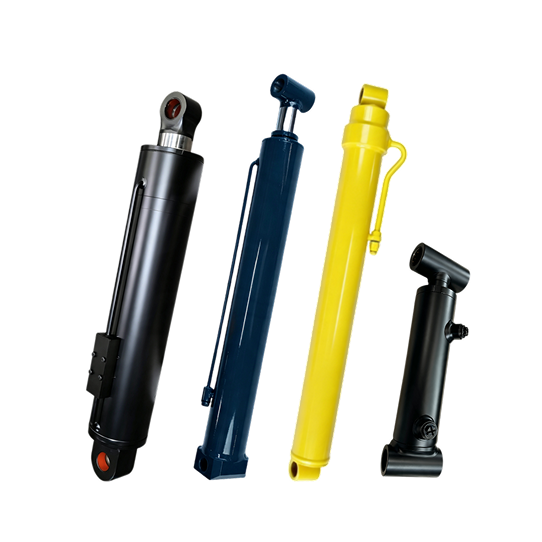

OUR SOLUTIONS
Pilot-operated check valve/anti-burst valve interfaces lock the platform during hose failure.
Precision-honed tubes and low-leakage seal designs, with static drift tested to project standards.
Optional flow dividers, displacement sensors or mechanical lock coordination for synchronized lifting
Hard chrome or Ni-Cr composite rod plating for humid, oily and salt-contaminated workshops.
Custom eyes, flanges and pins for two-post, four-post, scissor and in-ground lift configurations.
