COMPACT HYDRAULIC CYLINDERS FOR
AGVS & MOBILE ROBOTICS

Compact hydraulic cylinder solutions bring high force into the limited space available on AGVs and mobile robots. Low-profile and short-stroke hydraulic cylinder designs support repeatable jacking, clamping, and positioning at high cycle rates.

Home

Applications

AGV / Mobile Robotics

AGV / MOBILE ROBOTICS

Applied on tugger-AGVs, fork-AGVs, AMRs, smart material-handling robots and tote-handling robots. Cylinders perform jacking, clamping, gripping and telescopic pick-up — typical short-stroke + high-frequency + high-precision scenarios.

Tugger-AGVs

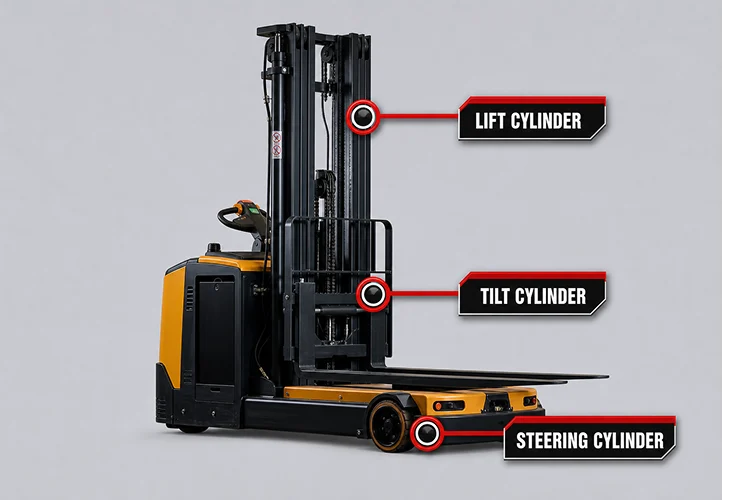

Fork-AGVs

AMRs

Smart Material-handling Robots

Tote-handling Robots

Tugger-AGVs

Fork-AGVs

AMRs

Smart Material-handling Robots

Tote-handling Robots

KEY CHALLENGES

CHALLENGES

Compact Envelope

Every millimeter inside an AGV matters, demanding flat / thin-wall designs.

Power-limited

Most AGVs are battery-powered with small HPUs, so internal leakage must be ultra-low.

Position Retention on Power-off

Load must not sag — mechanical or hydraulic locking required.

Ultra-high Cycle Count

Jacking AGVs make 2,000–5,000 cycles/day — 5-million-cycle maintenance-free required.

Noise Control

Lights-out warehouses require ≤ 65 dB.

OUR SOLUTIONS

Ultra-thin jacking cylinder series with strokes from 30mm, fits within 80mm-high AGVs.

Low-friction PU seal + self-lubricating guide band for low break-out pressure.

Mechanical self-locking nut or hydraulic lock valve — zero sag on power-off.

Engineered for 5-million-cycle life with N₂-charged accumulator chamber and long-life seals.

Optional IO-Link/CAN interface for position/pressure feedback to AGV controller.

RECOMMENDED PRODUCTS

PRODUCTS

Learn More
