DUMP TRUCKS

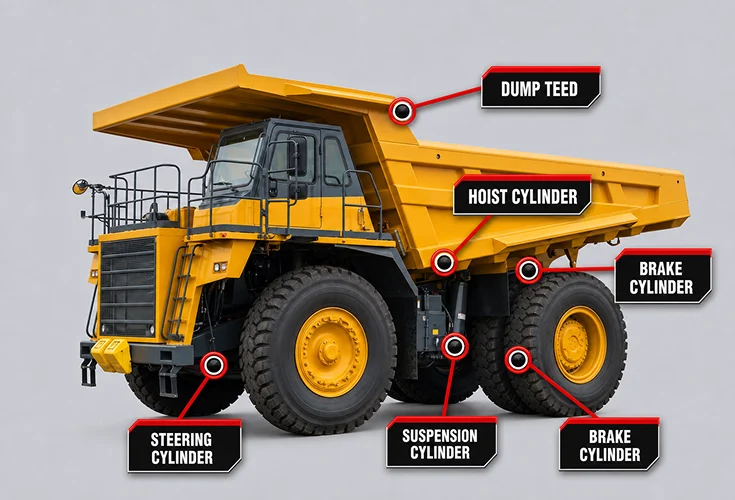

Used on light/medium/heavy-duty dump trucks, mining dumpers, dump semi-trailers and rear/side/three-way dumping bodies. The hoist cylinder is the core power unit for tipping the body.
Light/Medium/Heavy-duty Dump Trucks
Mining Dumpers
Dump Semi-trailers
Rear/Side/Three-way Dumping Bodies
Light/Medium/Heavy-duty Dump Trucks
Mining Dumpers
Dump Semi-trailers
Rear/Side/Three-way Dumping Bodies
KEY
CHALLENGES
Ultra-long Stroke
Dump angle ≥ 50°, multi-stage cylinders extend up to 8–10m.
Heavy Load
Heavy-duty trucks carry 30–60T — instantaneous shock load on lifting is enormous.
Side-tip Safety
Side-dump trucks risk tipping on uneven ground — anti-tip structure required.
Mounting Tolerances
Cylinder mount distance and stroke must precisely match the body hoist linkage.
Mining-site Harshness
Dust, vibration and large temperature swings stress seal life.
OUR SOLUTIONS
3/4/5-stage telescopic hoists, max extended 10m and collapsed ≤ 2.0m.
35CrMo seamless barrel and 42CrMo Q&T, chrome-plated piston rod.
Top-mounted limit valve prevents over-lift; bottom anti-fall valve prevents stall-drop.
Front-mount (FC), front-end (FE) and direct-push styles available for all mainstream chassis.
Mining version with reinforced guide and wiper assembly — seal life ≥ 5 years.
